Used Fisher 6-inch V300 rotary control valve — VL-29
Used Fisher 6-inch V300 rotary control valve — VL-29
Condition: Used

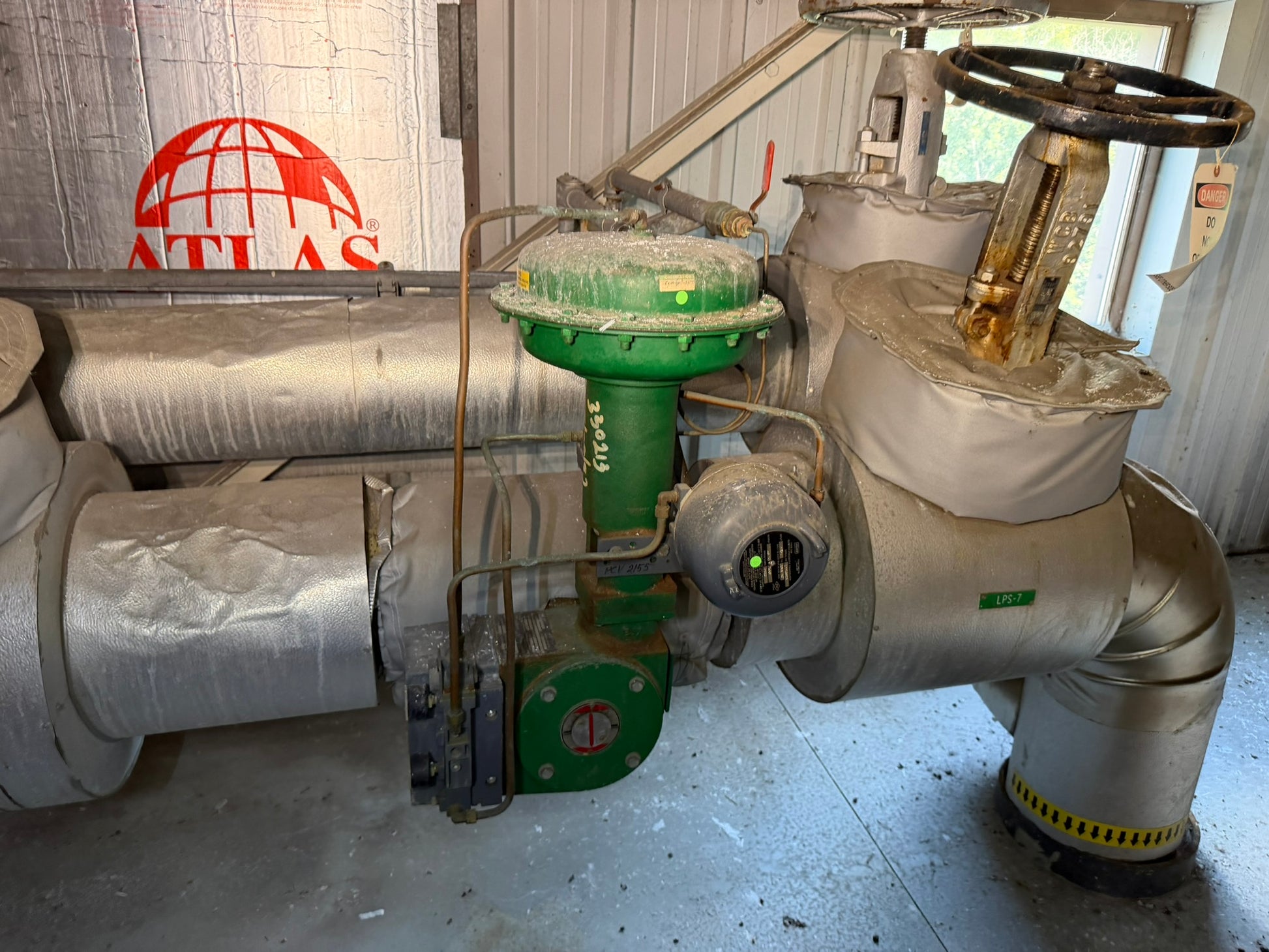

Photographed installed at the Remington site in Ilion, New York.
Testing, operating condition and readiness for dispatch have not been verified.
Availability, inspection arrangements, the exact scope of supply, removal and delivery are confirmed by quote. A displayed asking price does not establish those terms.
Contact for more infoCondition: Used. Untested industrial surplus. Operation, completeness and present service suitability have not been verified. No refurbishment, current calibration, certification or warranty is represented.
V300 rotary V-ball control-valve assembly with a 1052 pneumatic actuator. Flanged Vee-Ball rotary control valve with a spring-return diaphragm rotary actuator.
Item identification
| Catalog reference | REM-VL-29 |
|---|---|
| Manufacturer / marking | Fisher |
| Model / type | V300 / 1052 size 40 |
| Serial / identifying number | 12316952 |
| Lot basis | One recorded item or assembly |

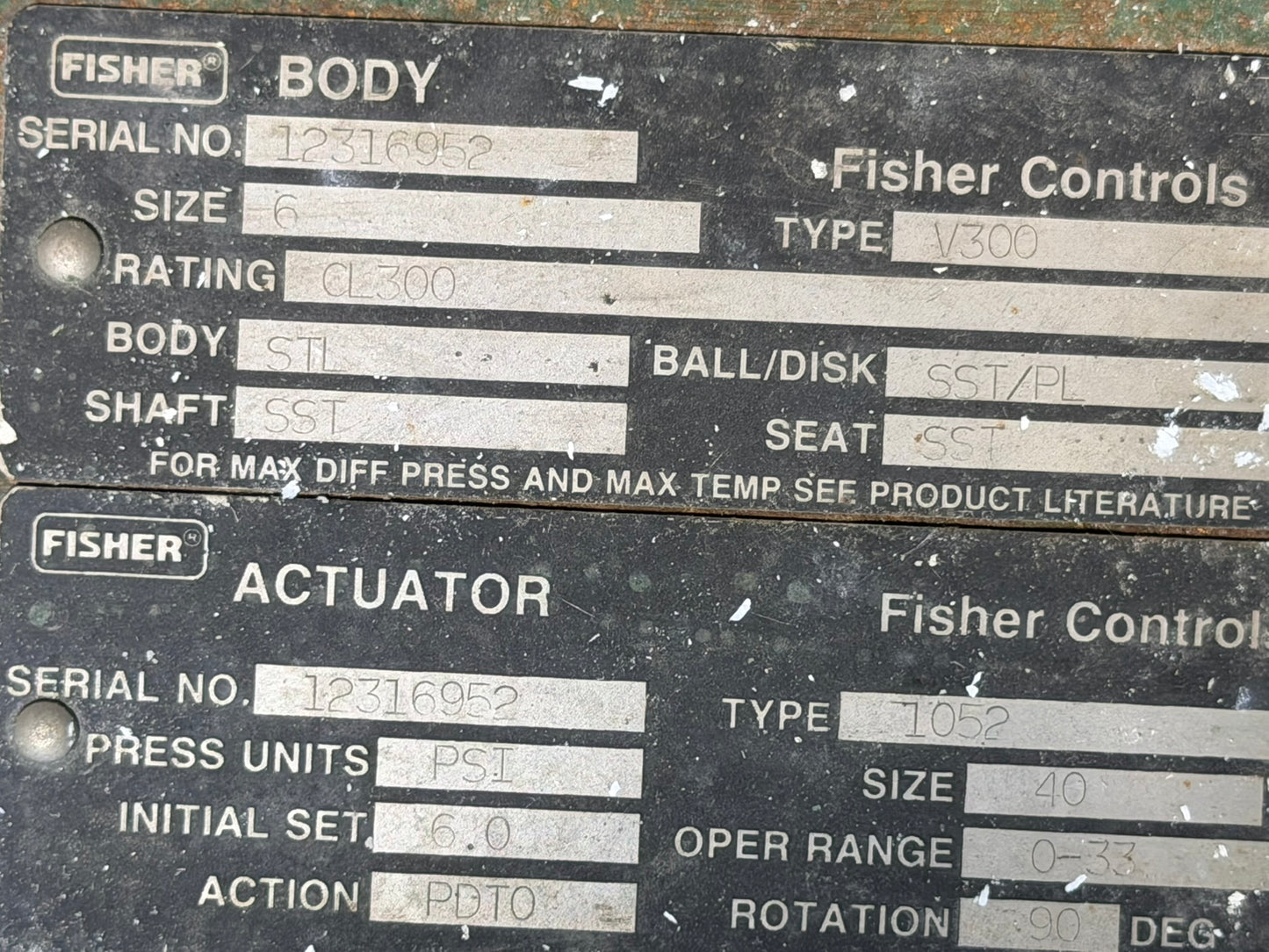

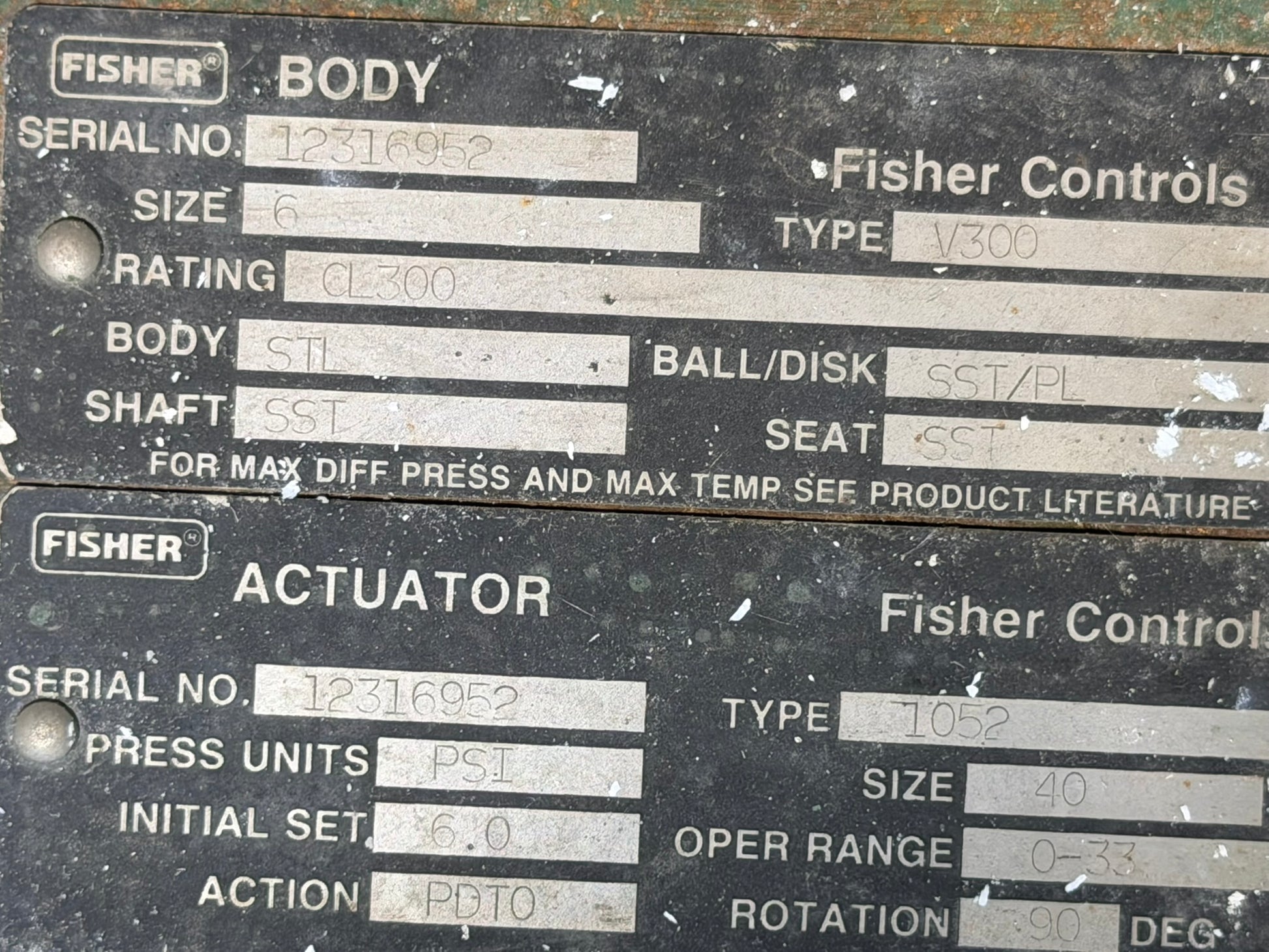

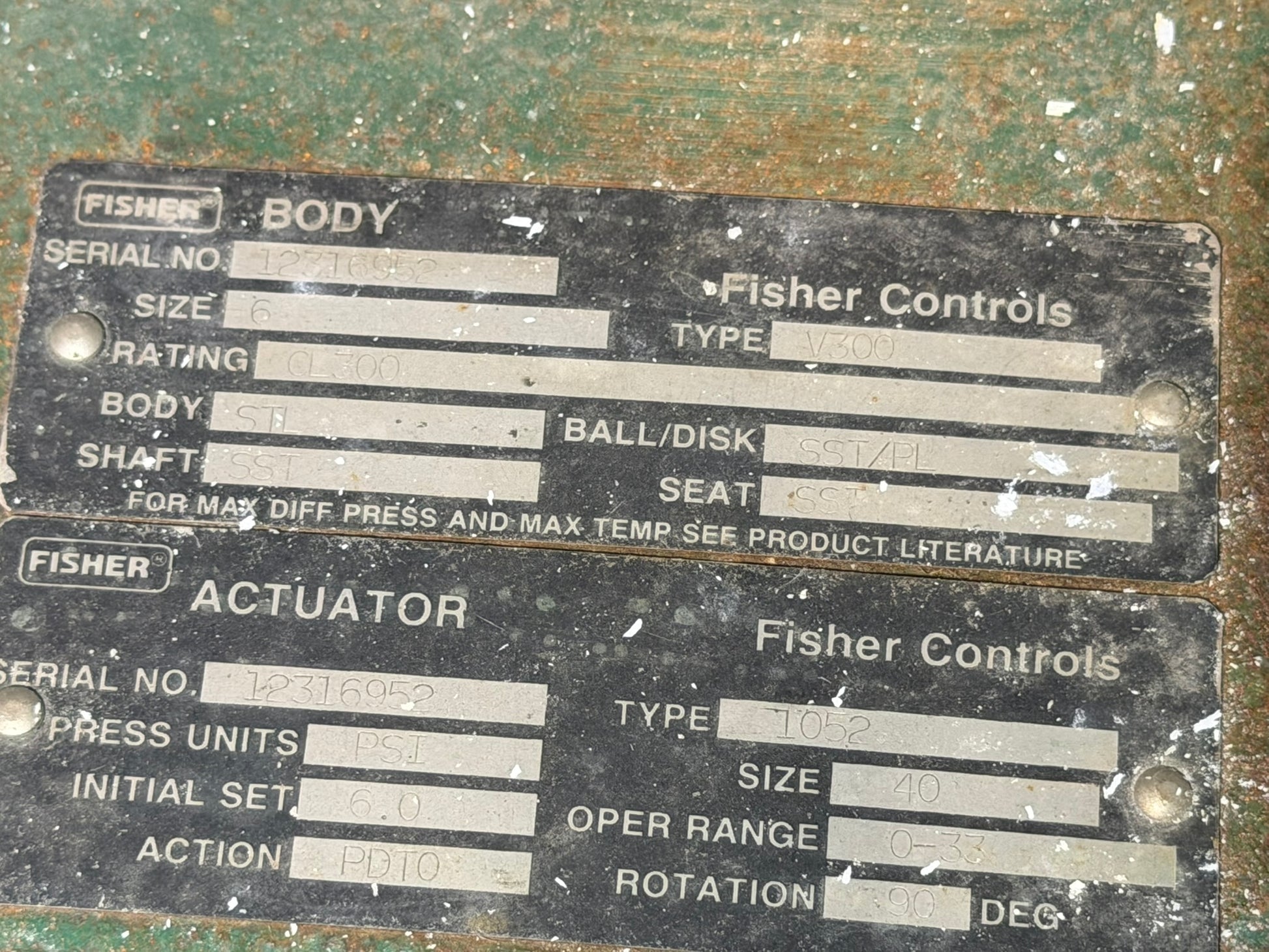

Photographed markings and specifications
Values below describe visible nameplate or equipment markings. Original design ratings do not demonstrate current performance.
| Size / class | 6 in / Class 300 |
|---|---|
| Body / ball | STL / SST-PL marking |
| Shaft / seat | SST / SST |
| Actuator | 1052, size 40 |
| Operating range / initial set | 0–33 psi / 6.0 psi |
| Rotation / action marking | 90 degrees / PDTO |
| Accessory | Mounted Fisher 546 I/P |
Included scope
The described item or lot only. Nearby piping, wiring, cabinets and separately catalogued equipment are not automatically included. Final included components and removal boundaries will be confirmed before sale.
Identification and inspection notes
- Exact ball/seal materials, Cv and service suitability require the installed configuration record.
Location and fulfillment
Photographed installed at the Remington Boiler/Generator Plant, Ilion, New York, on August 28, 2026. These survey photographs do not confirm present stock location or immediate availability.
Availability, item release, included accessories, removal/loading responsibilities, handling time and freight or parcel arrangements must be confirmed before an order is accepted. Packed dimensions and shipping weight are not established; shipping is quoted separately.
Electrical, pressure-containing and process equipment requires assessment by qualified personnel before energization, installation or service.
Contact for more info about pricing, availability and shipping, using catalog reference REM-VL-29. Photos are of the surveyed equipment; surrounding items are not automatically included.
