Used Fisher 3-inch HPT high-pressure control valve — VL-24
Used Fisher 3-inch HPT high-pressure control valve — VL-24
Condition: Used

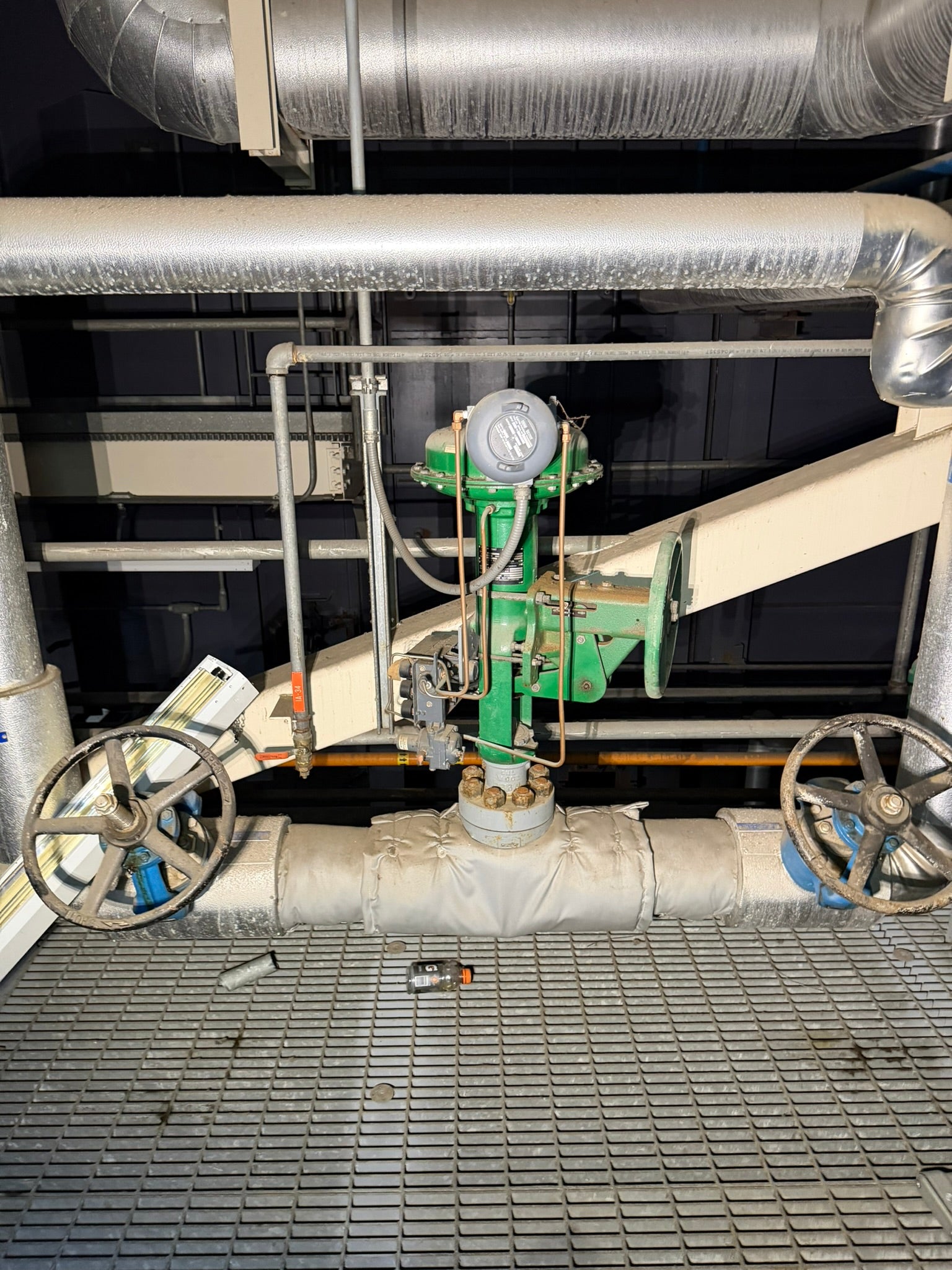

Photographed installed at the Remington site in Ilion, New York.
Testing, operating condition and readiness for dispatch have not been verified.
Availability, inspection arrangements, the exact scope of supply, removal and delivery are confirmed by quote. A displayed asking price does not establish those terms.
Contact for more infoCondition: Used. Untested industrial surplus. Operation, completeness and present service suitability have not been verified. No refurbishment, current calibration, certification or warranty is represented.
High-pressure globe control-valve assembly, including its pneumatic diaphragm actuator and mounted I/P. Pressure-temperature suitability requires the manufacturer rating for the actual material and service. High-pressure globe control valve with balanced plug and cage guidance; spring-and-diaphragm sliding-stem actuator.
Item identification
| Catalog reference | REM-VL-24 |
|---|---|
| Manufacturer / marking | Fisher |
| Model / type | HPT / 667 size 50 |
| Serial / identifying number | 12316409 |
| Lot basis | One recorded item or assembly |

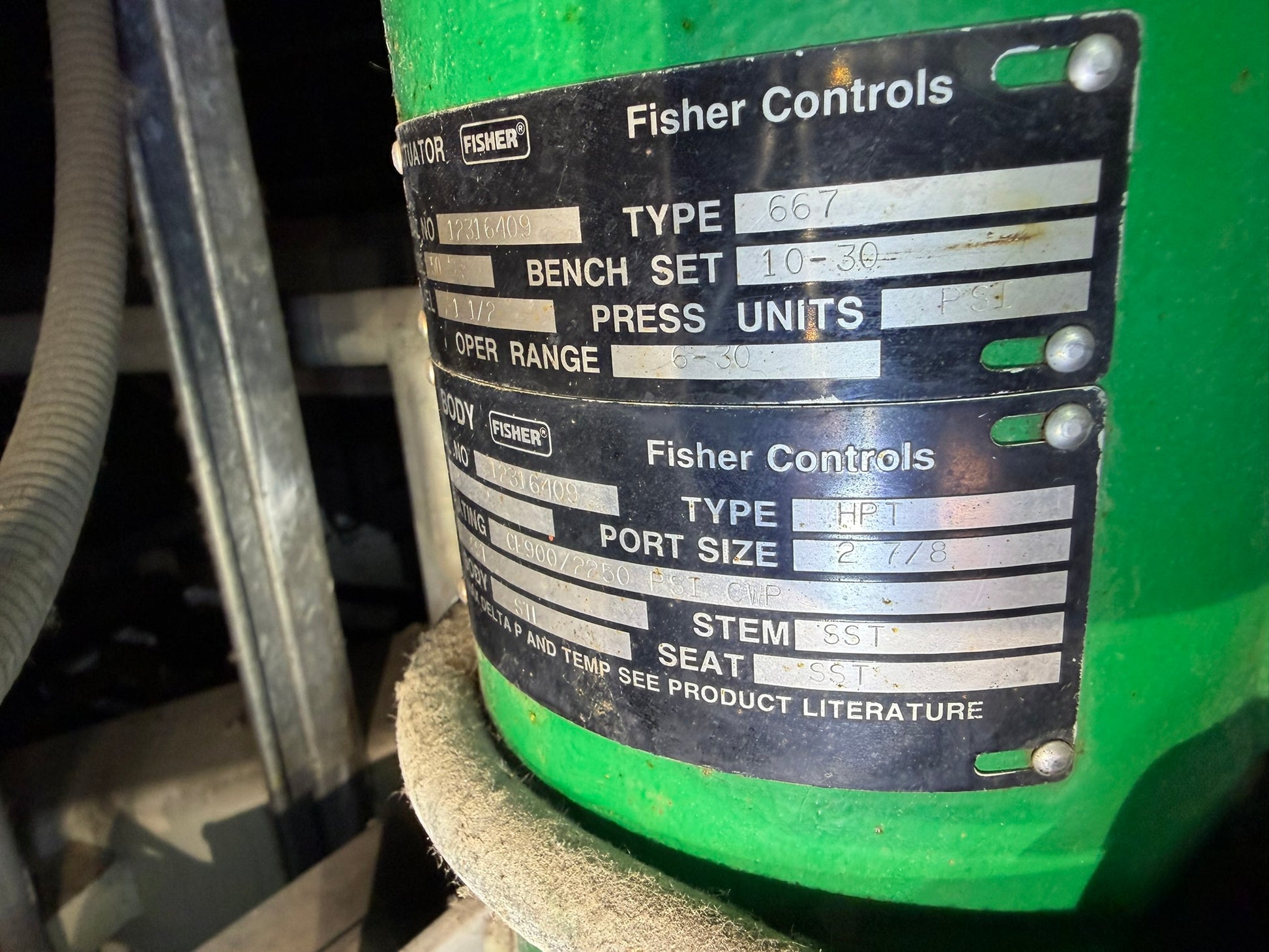

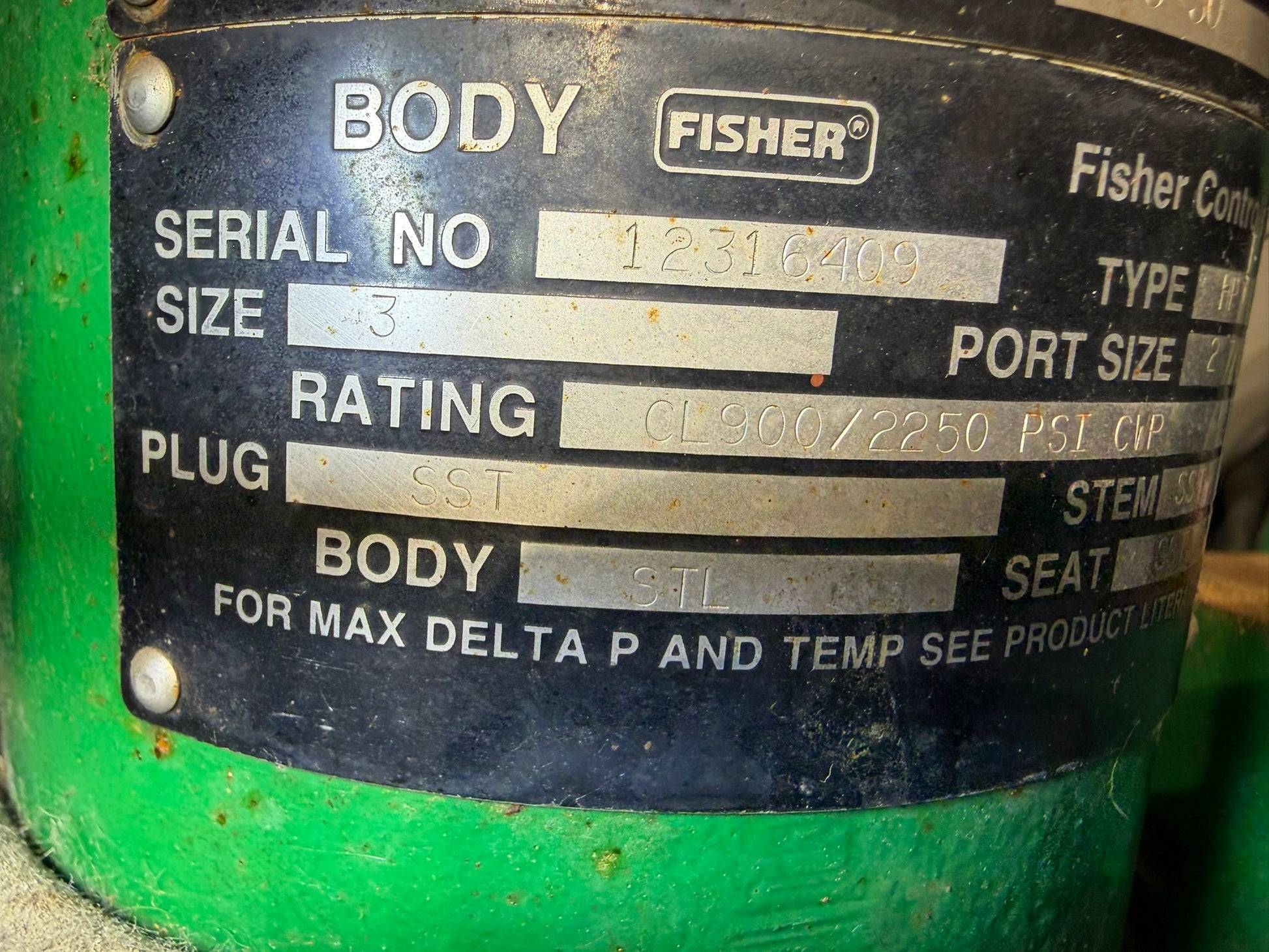

Photographed markings and specifications
Values below describe visible nameplate or equipment markings. Original design ratings do not demonstrate current performance.
| Body size / port | 3 in / 2-7/8 in |
|---|---|
| Body rating | Class 900 / 2,250 psi CWP |
| Body / trim | STL body; SST plug, stem and seat |
| Actuator | 667, size 50 |
| Travel | 1-1/2 in |
| Actuator pressure | 10–30 psi bench set; 6–30 psi operating range |

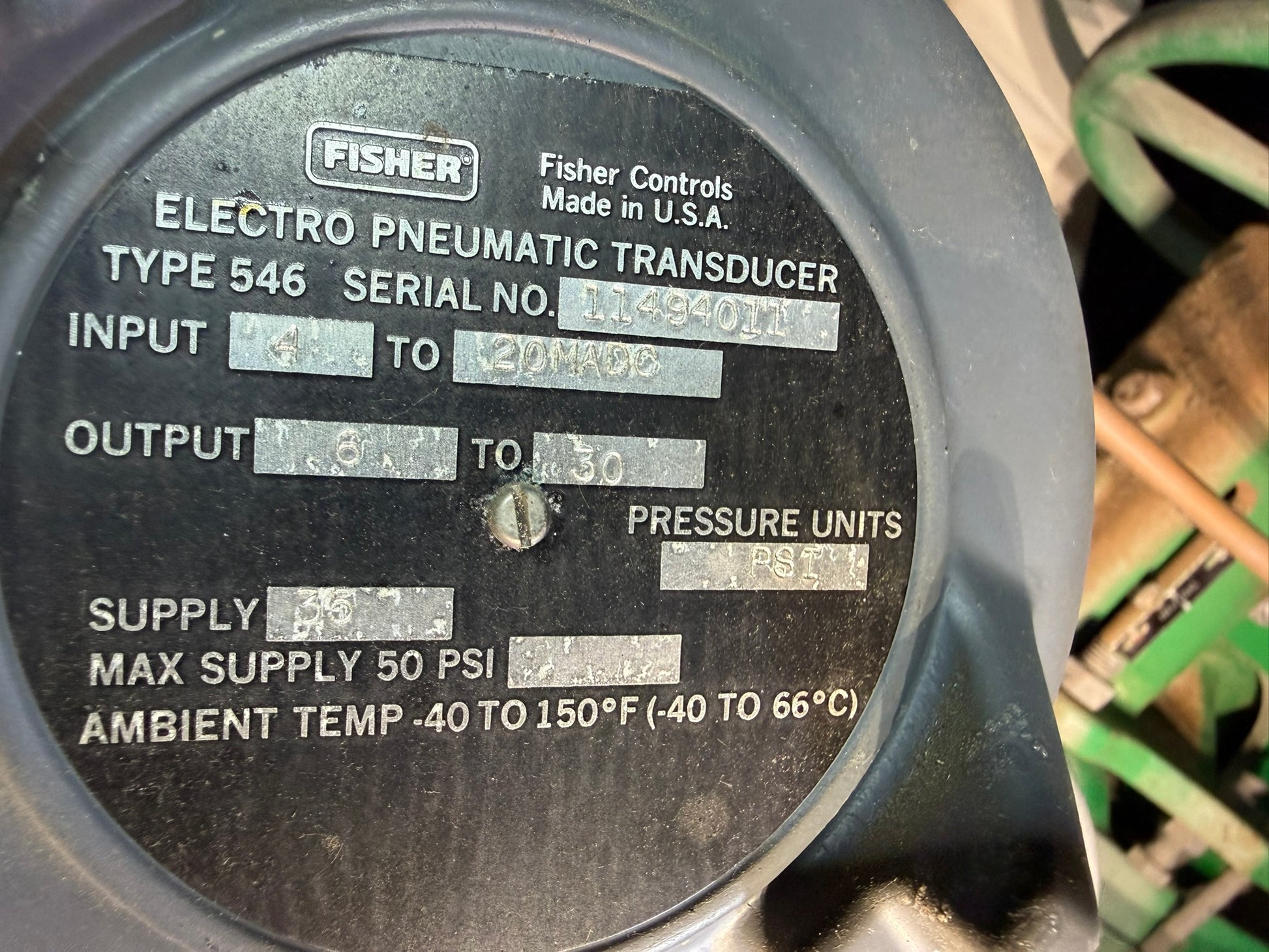

| Accessory | Mounted Fisher 546 I/P transducer |
Included scope
The described item or lot only. Nearby piping, wiring, cabinets and separately catalogued equipment are not automatically included. Final included components and removal boundaries will be confirmed before sale.
Location and fulfillment
Photographed installed at the Remington Boiler/Generator Plant, Ilion, New York, on August 28, 2026. These survey photographs do not confirm present stock location or immediate availability.
Availability, item release, included accessories, removal/loading responsibilities, handling time and freight or parcel arrangements must be confirmed before an order is accepted. Packed dimensions and shipping weight are not established; shipping is quoted separately.
Electrical, pressure-containing and process equipment requires assessment by qualified personnel before energization, installation or service.
Contact for more info about pricing, availability and shipping, using catalog reference REM-VL-24. Photos are of the surveyed equipment; surrounding items are not automatically included.
