Used Line Power 2,500/3,333 kVA dry-type motor-drive isolation transformer — 13.8 kV to 480Y/277 V — TR-01
Used Line Power 2,500/3,333 kVA dry-type motor-drive isolation transformer — 13.8 kV to 480Y/277 V — TR-01
Condition: Used

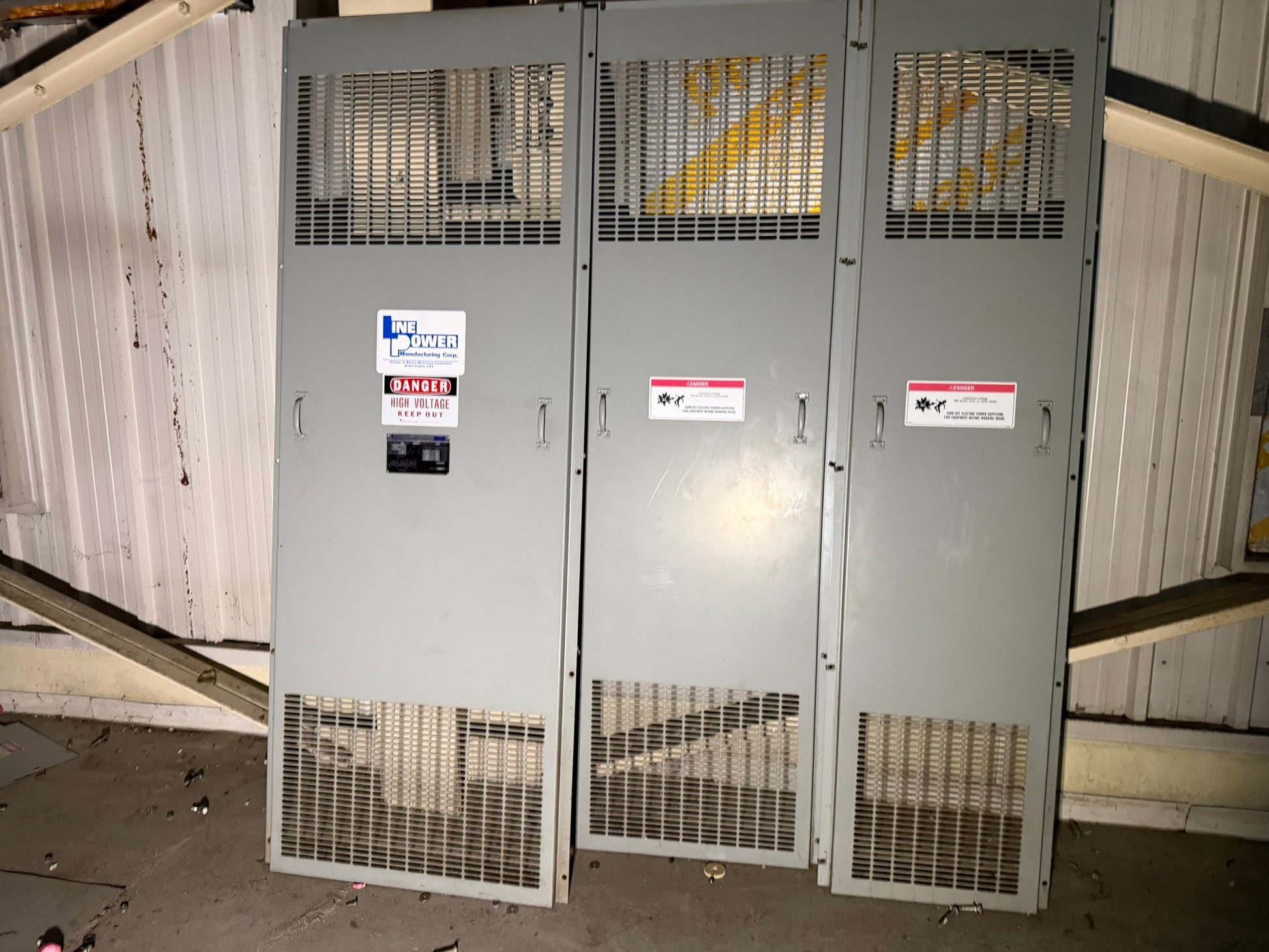

Photographed installed at the Remington site in Ilion, New York.
Testing, operating condition and readiness for dispatch have not been verified.
Availability, inspection arrangements, the exact scope of supply, removal and delivery are confirmed by quote. A displayed asking price does not establish those terms.
Contact for more infoCondition: Used. Untested industrial surplus. Operation, completeness and present service suitability have not been verified. No refurbishment, current calibration, certification or warranty is represented.
Visible condition and inspection limits

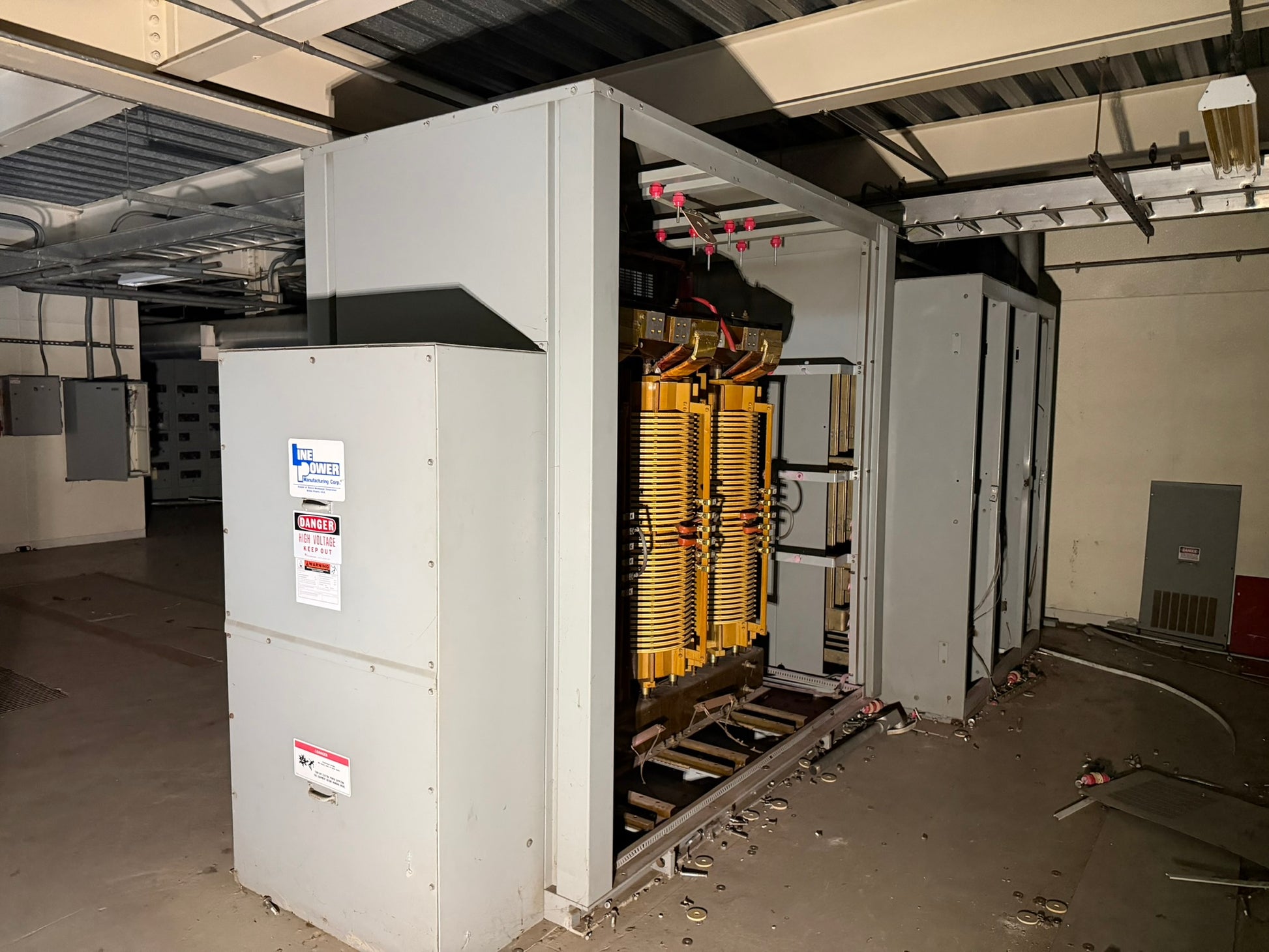

- Interior covers are open and some connections appear disconnected or incomplete. Verify retained covers, tap hardware, bus links and cables before a completeness claim.
- Insulation resistance, transformer turns ratio, winding resistance, dielectric condition, temperature devices, grounding and suitability for re-energization were not tested.
One Line Power dry-type motor-drive isolation transformer. The detailed plate states 2,500/3,333 kVA continuous, 13,800 V primary, 480Y/277 V secondary, 3 phase, 60 Hz, 150°C rise, 5.97% impedance and 9,360 lb total weight. The 72039 identifier also appears on the photographed core/coil. A separate blue-plated 2,500 kVA enclosure is recorded as Transformer B and must not be merged into this item.
Item identification
| Catalog reference | REM-TR-01 |
|---|---|
| Manufacturer / marking | Line Power Manufacturing Corp., division of Electro-Mechanical Corporation |
| Model / type | Dry Type Motor Drive Isolation Transformer AA (nameplate type) |
| Serial / identifying number | 72039 / I0108A (first I/1 in suffix ambiguous) |
| Lot basis | One recorded item or assembly |

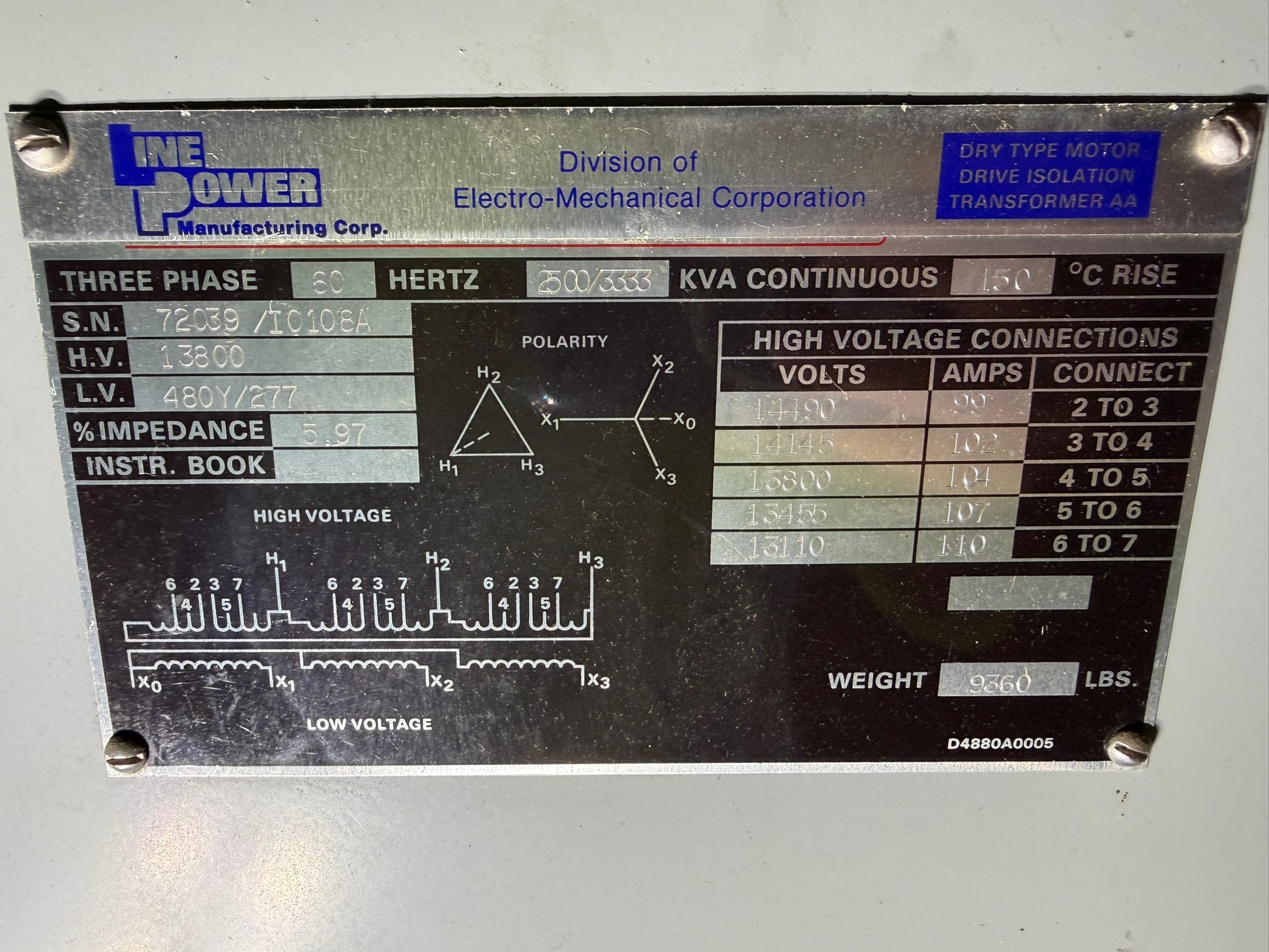

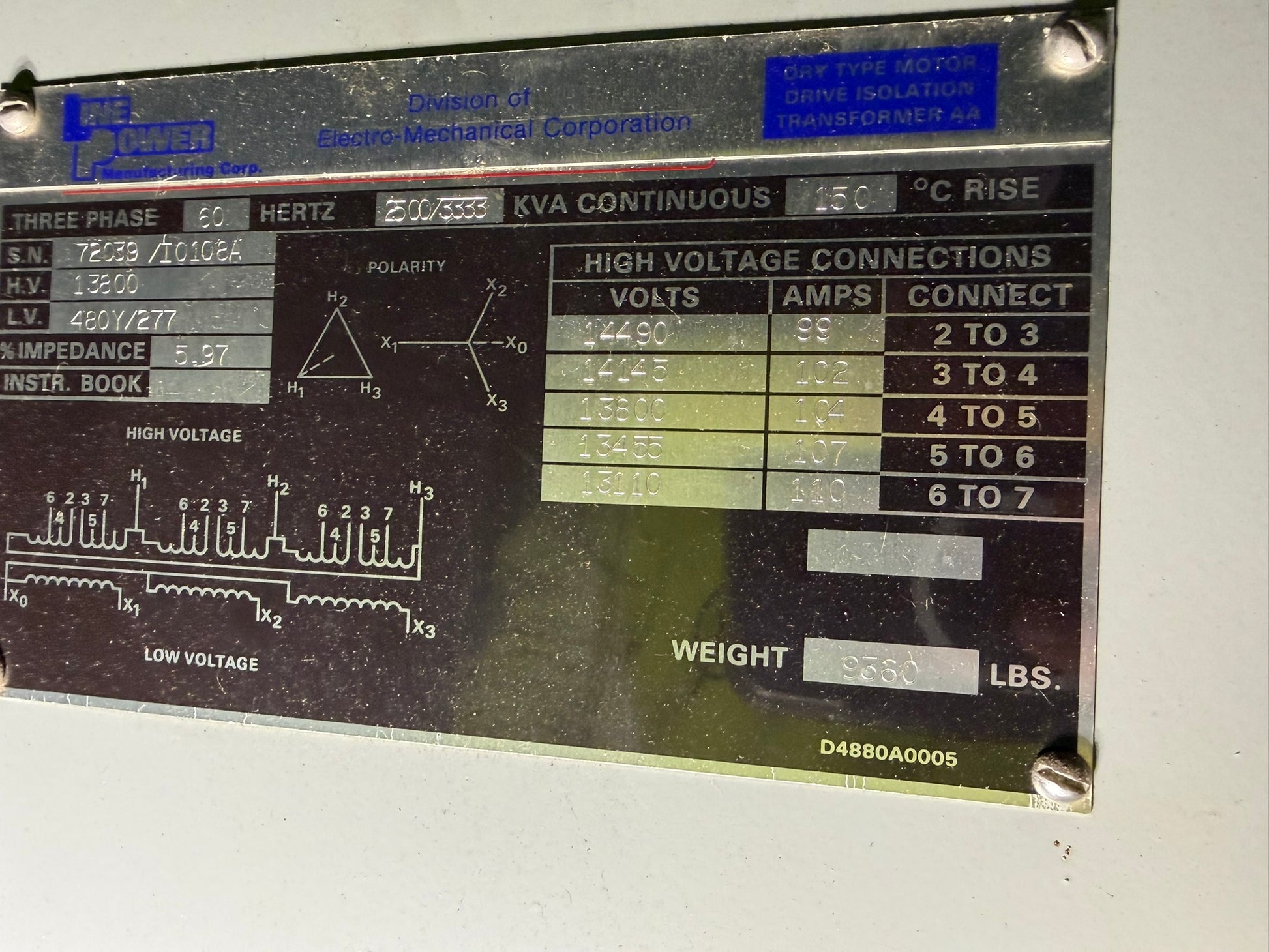

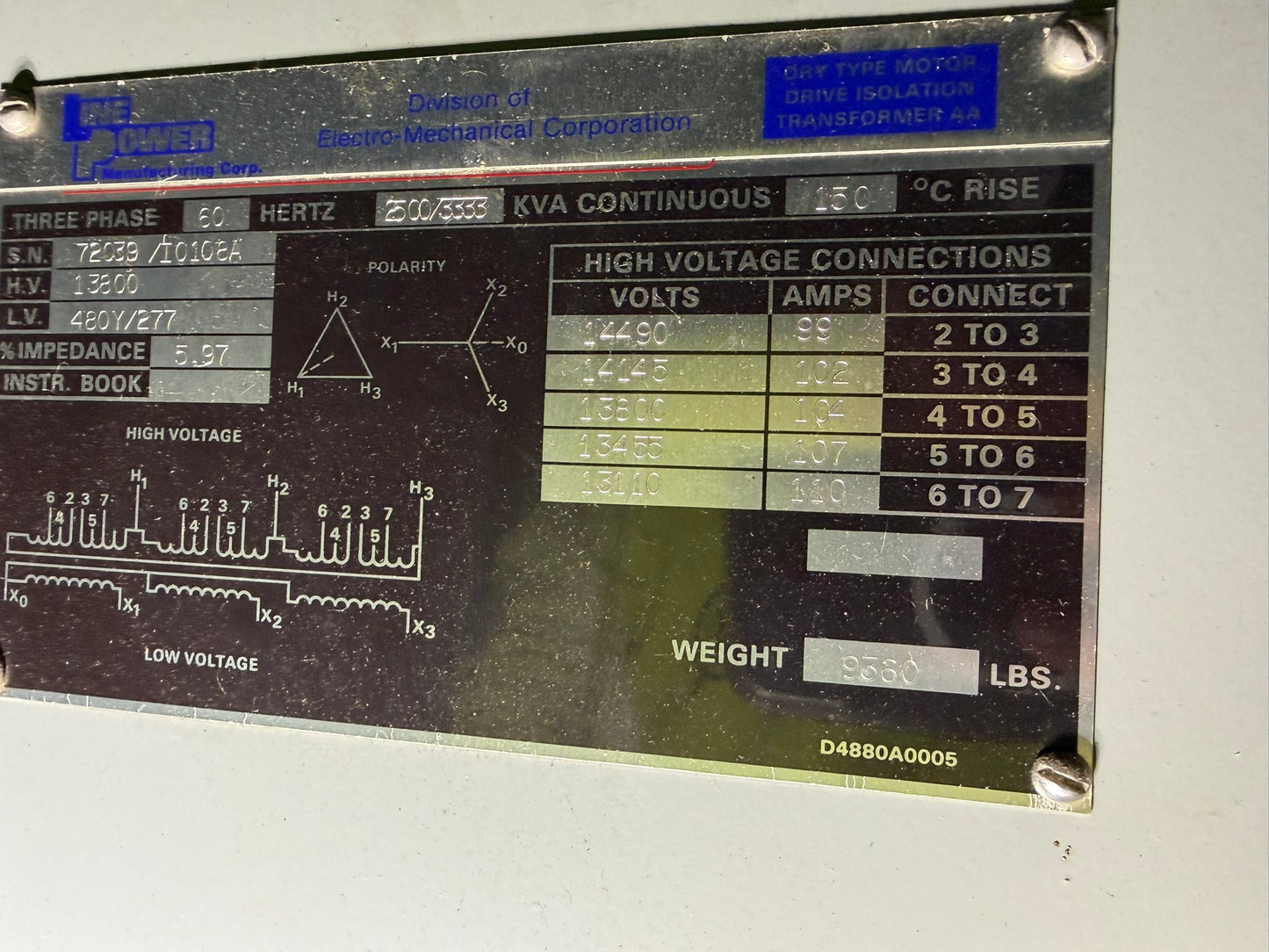

Photographed markings and specifications
Values below describe visible nameplate or equipment markings. Original design ratings do not demonstrate current performance.
| Nameplate type | DRY TYPE MOTOR DRIVE ISOLATION TRANSFORMER AA |
|---|---|
| Rating | 2,500/3,333 kVA CONTINUOUS (as stamped; dual-rating conditions unverified) |
| Primary voltage | 13,800 V |
| Secondary voltage | 480Y/277 V |
| Phases / frequency | 3 phase / 60 Hz |
| Connection diagram | Delta primary / wye secondary with X0 terminal |
| Temperature rise | 150°C |
| Impedance | 5.97% |
| Serial marking | 72039 / I0108A (first I/1 in suffix ambiguous) |

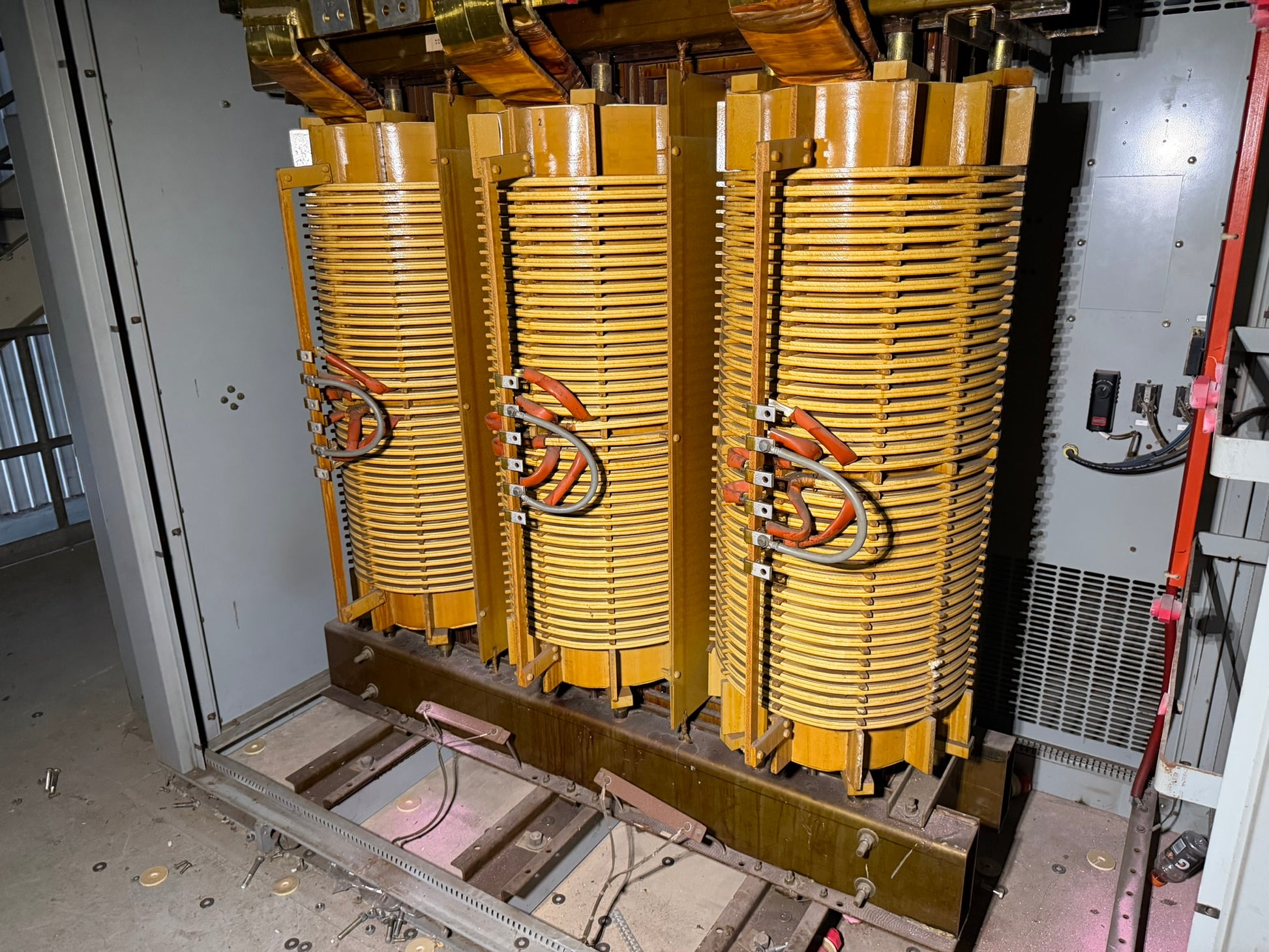

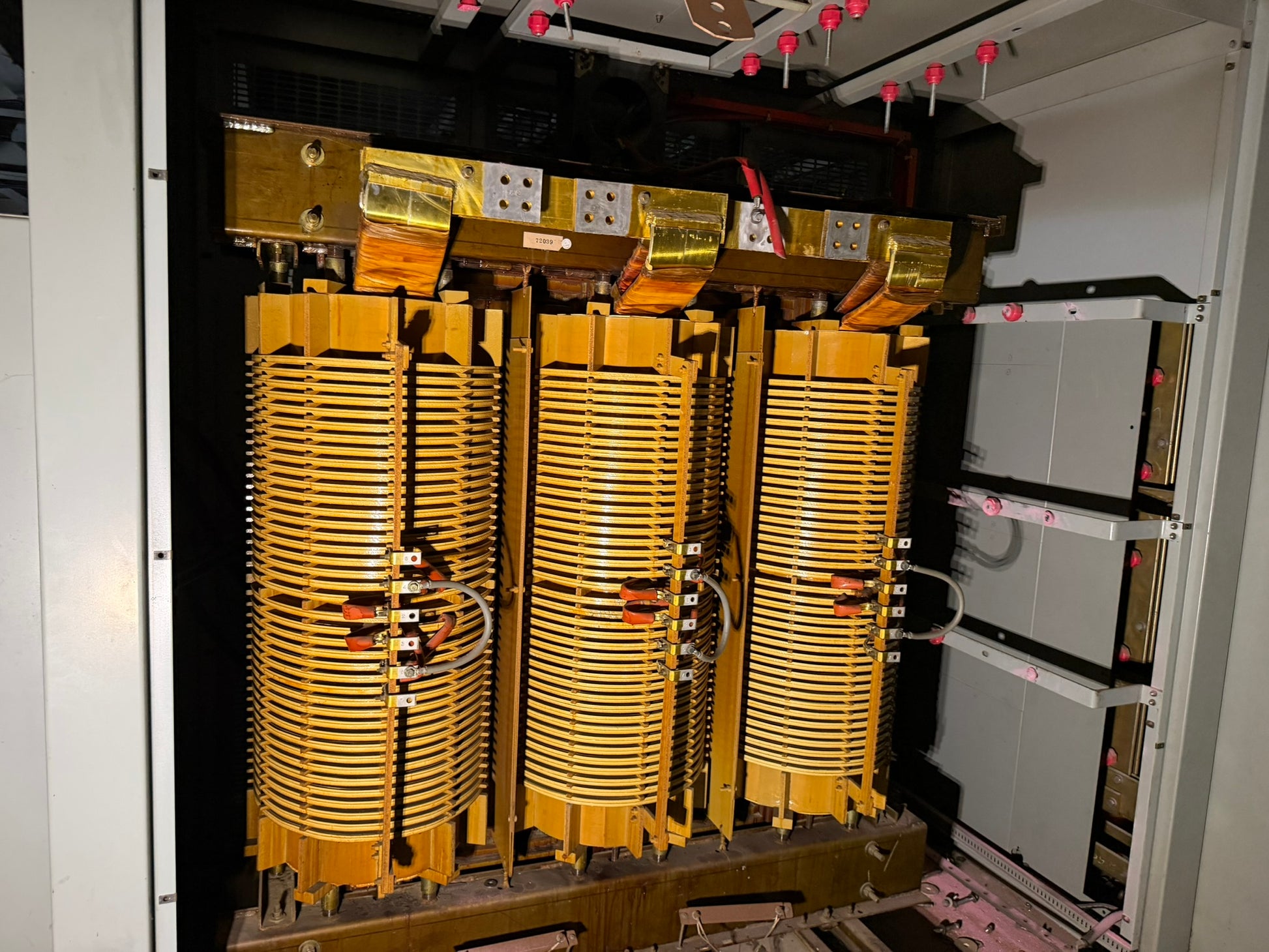

| Core/coil identification | 72039 sticker matches main plate |
| Total unit weight | 9,360 lb |
| Primary taps | 14,490 / 14,145 / 13,800 / 13,455 / 13,110 V |
| Tap current table | 99 / 102 / 104 / 107 / 110 A respectively |
| Tap link table | 2–3 / 3–4 / 4–5 / 5–6 / 6–7 respectively |
| Nameplate drawing identifier | D4880A0005 (not represented as model) |
| Winding conductor material | Not established from available evidence |
Included scope
Transformer A enclosure and matching core/coil only. Adjacent switchgear and other transformers are excluded unless separately agreed.
Identification and inspection notes
- This record covers Transformer A and its matching core/coil. The neighboring enclosure and switchgear are not included by default.
- The serial suffix remains ambiguous between I0108A and 10108A.
- The plate shows AA and 2,500/3,333 kVA continuous. Any required cooling arrangement for the dual rating needs manufacturer confirmation.
- Winding conductor material has not been established from the photographs.
Location and fulfillment
Photographed installed at the Remington Boiler/Generator Plant, Ilion, New York, on August 28, 2026. These survey photographs do not confirm present stock location or immediate availability.
Availability, item release, included accessories, removal/loading responsibilities, handling time and freight or parcel arrangements must be confirmed before an order is accepted. Packed dimensions and shipping weight are not established; shipping is quoted separately.
Electrical, pressure-containing and process equipment requires assessment by qualified personnel before energization, installation or service.
Request availability, item details and a shipping quote using catalog reference REM-TR-01. Photos are of the surveyed equipment; surrounding items are not automatically included.
