Used NEMA size 5 motor starter — A200M5CXXZ1 — MS-23
Used NEMA size 5 motor starter — A200M5CXXZ1 — MS-23
Condition: Used

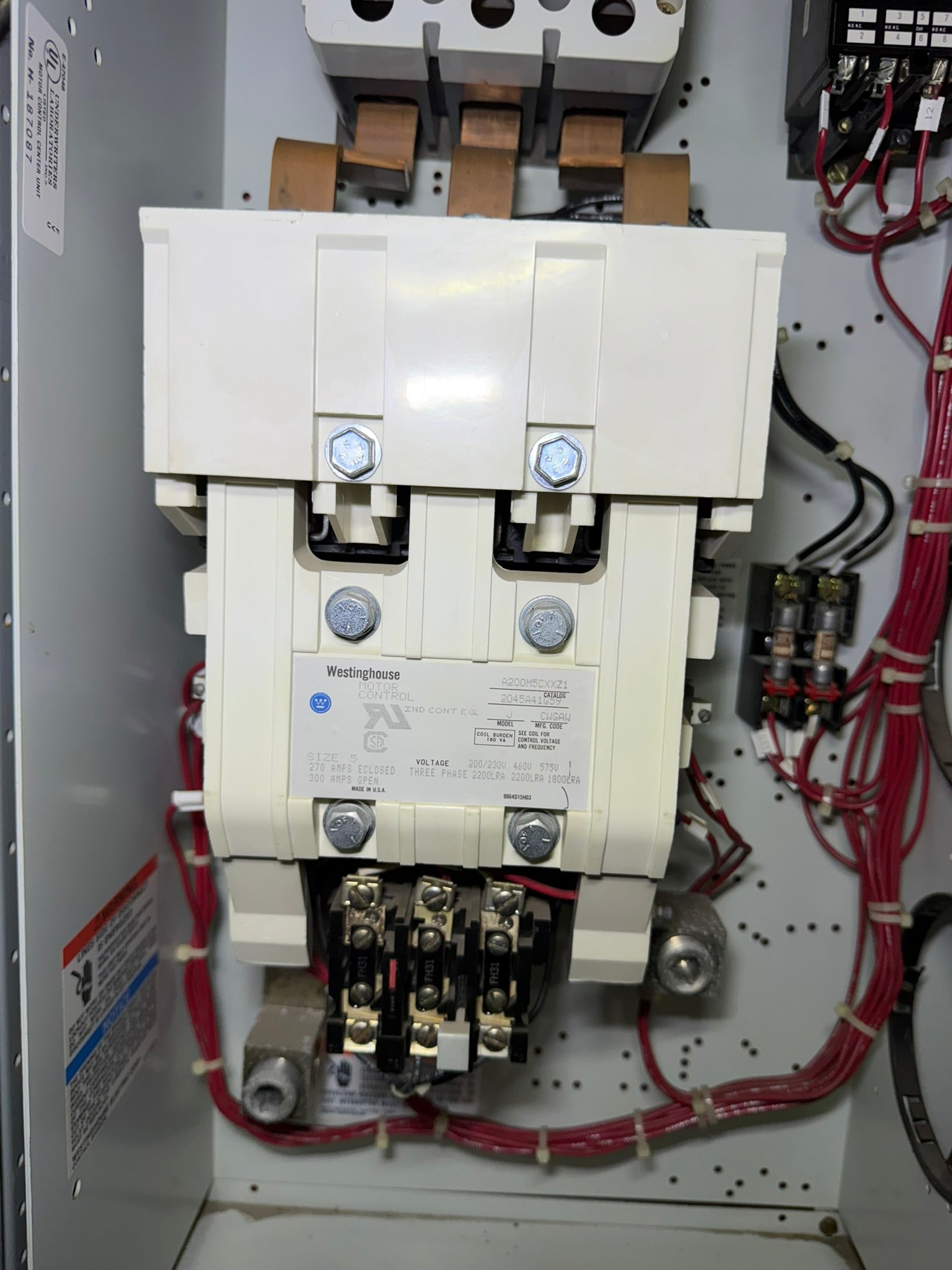

Photographed installed at the Remington site in Ilion, New York.
Testing, operating condition and readiness for dispatch have not been verified.
Availability, inspection arrangements, the exact scope of supply, removal and delivery are confirmed by quote. A displayed asking price does not establish those terms.
Contact for more infoCondition: Used. Untested industrial surplus. Operation, completeness and present service suitability have not been verified. No refurbishment, current calibration, certification or warranty is represented.
Westinghouse A200M5CXXZ1, NEMA size 5, three-pole nonreversing motor starter. Nameplate permits 270 A enclosed / 300 A open. Installed coil voltage and component completeness are unverified.
Item identification
| Catalog reference | REM-MS-23 |
|---|---|
| Manufacturer / marking | Westinghouse |
| Model / type | A200M5CXXZ1 |
| Serial / identifying number | Not established in the supplied photographs |
| Lot basis | One recorded item or assembly |

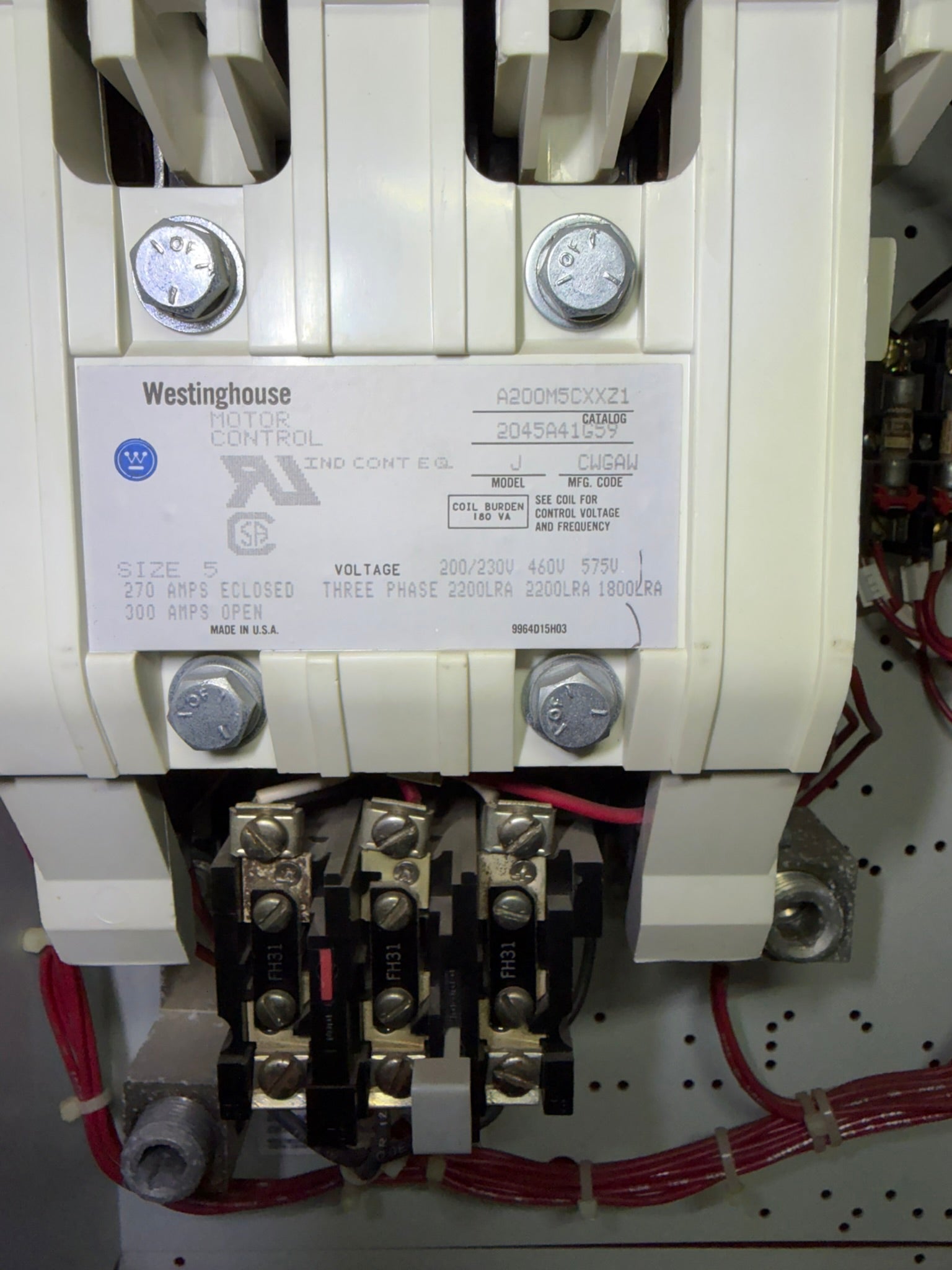

Photographed markings and specifications
Values below describe visible nameplate or equipment markings. Original design ratings do not demonstrate current performance.
| Manufacturer | Westinghouse |
|---|---|
| Catalog / model | A200M5CXXZ1 |
| Style number (not serial) | 2045A41G59 |
| Serial number | Not legible / not shown |
| NEMA size | 5 |
| Poles | 3 |
| Continuous current | 270 A enclosed / 300 A open |
| Coil burden | 180 VA |
| Locked-rotor rating | 2,200 LRA at 200/230 and 460 V; 1,800 LRA at 575 V |
| Installed coil voltage | Not confirmed; label refers to coil marking |
Included scope
The described item or lot only. Nearby piping, wiring, cabinets and separately catalogued equipment are not automatically included. Final included components and removal boundaries will be confirmed before sale.
Identification and inspection notes
- A catalog coil rating does not establish the currently installed coil; replacement coils and overload/heater components must be checked.
Location and fulfillment
Photographed installed at the Remington Boiler/Generator Plant, Ilion, New York, on August 28, 2026. These survey photographs do not confirm present stock location or immediate availability.
Availability, item release, included accessories, removal/loading responsibilities, handling time and freight or parcel arrangements must be confirmed before an order is accepted. Packed dimensions and shipping weight are not established; shipping is quoted separately.
Electrical, pressure-containing and process equipment requires assessment by qualified personnel before energization, installation or service.
Contact for more info about pricing, availability and shipping, using catalog reference REM-MS-23. Photos are of the surveyed equipment; surrounding items are not automatically included.
