Used 400 A circuit breaker — HKD3400F / KT3400T — CB-33
Used 400 A circuit breaker — HKD3400F / KT3400T — CB-33
Condition: Used

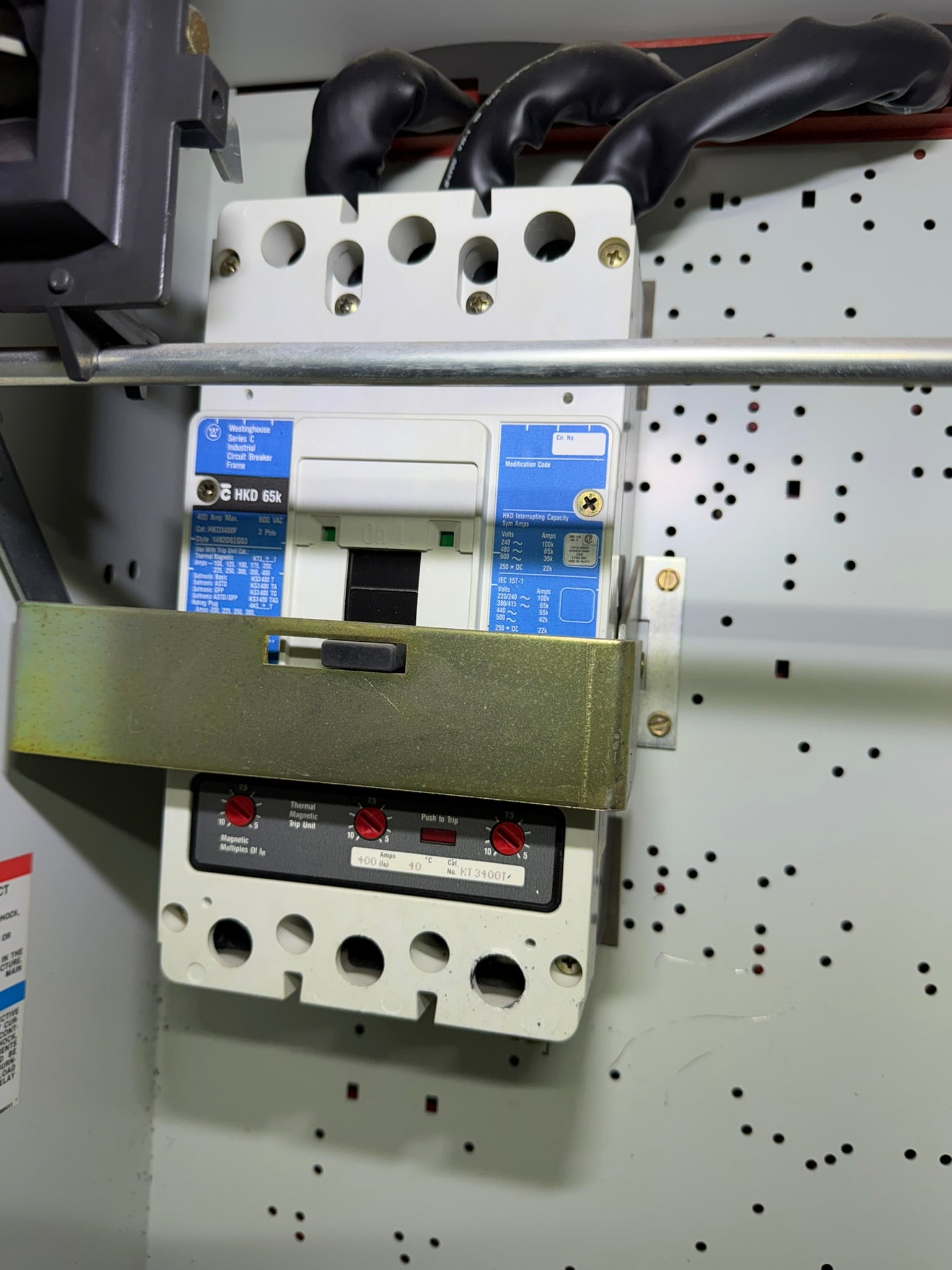

Photographed installed at the Remington site in Ilion, New York.
Testing, operating condition and readiness for dispatch have not been verified.
Availability, inspection arrangements, the exact scope of supply, removal and delivery are confirmed by quote. A displayed asking price does not establish those terms.
Contact for more infoCondition: Used. Untested industrial surplus. Operation, completeness and present service suitability have not been verified. No refurbishment, current calibration, certification or warranty is represented.
Westinghouse HKD3400F 400 A frame fitted with KT3400T 400 A trip. Catalog and value refer to the complete assembled breaker, not an empty frame.
Item identification
| Catalog reference | REM-CB-33 |
|---|---|
| Manufacturer / marking | Westinghouse |
| Model / type | HKD3400F |
| Serial / identifying number | Not established in the supplied photographs |
| Lot basis | One recorded item or assembly |

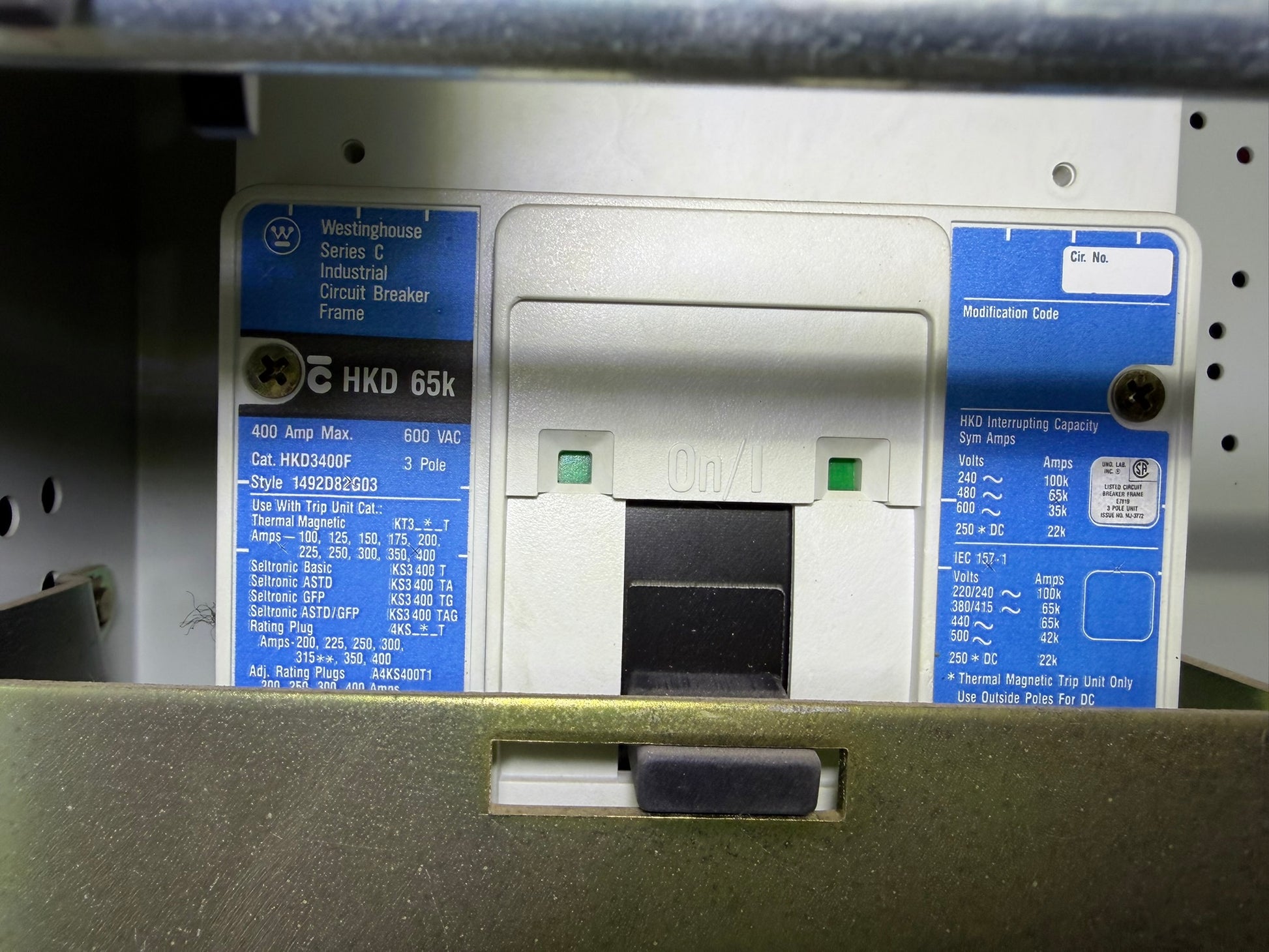

Photographed markings and specifications
Values below describe visible nameplate or equipment markings. Original design ratings do not demonstrate current performance.
| Manufacturer | Westinghouse |
|---|---|
| Catalog / model | HKD3400F |
| Style number (not serial) | 1492D82G03 |
| Serial number | Not legible / not shown |
| Frame rating | 400 A |
| Installed trip | KT3400T |
| Installed trip current | 400 A |
| Poles | 3 |
| Maximum voltage | 600 V AC / 250 V DC |
| Interrupting capacity | 100 kA at 240 V AC; 65 kA at 480 V AC; 35 kA at 600 V AC |
Included scope
The described item or lot only. Nearby piping, wiring, cabinets and separately catalogued equipment are not automatically included. Final included components and removal boundaries will be confirmed before sale.
Identification and inspection notes
- Installed trip determines the current rating; frame catalog alone is insufficient. Confirm all poles, lugs and accessories match the required application.
Location and fulfillment
Photographed installed at the Remington Boiler/Generator Plant, Ilion, New York, on August 28, 2026. These survey photographs do not confirm present stock location or immediate availability.
Availability, item release, included accessories, removal/loading responsibilities, handling time and freight or parcel arrangements must be confirmed before an order is accepted. Packed dimensions and shipping weight are not established; shipping is quoted separately.
Electrical, pressure-containing and process equipment requires assessment by qualified personnel before energization, installation or service.
Request availability, item details and a shipping quote using catalog reference REM-CB-33. Photos are of the surveyed equipment; surrounding items are not automatically included.
